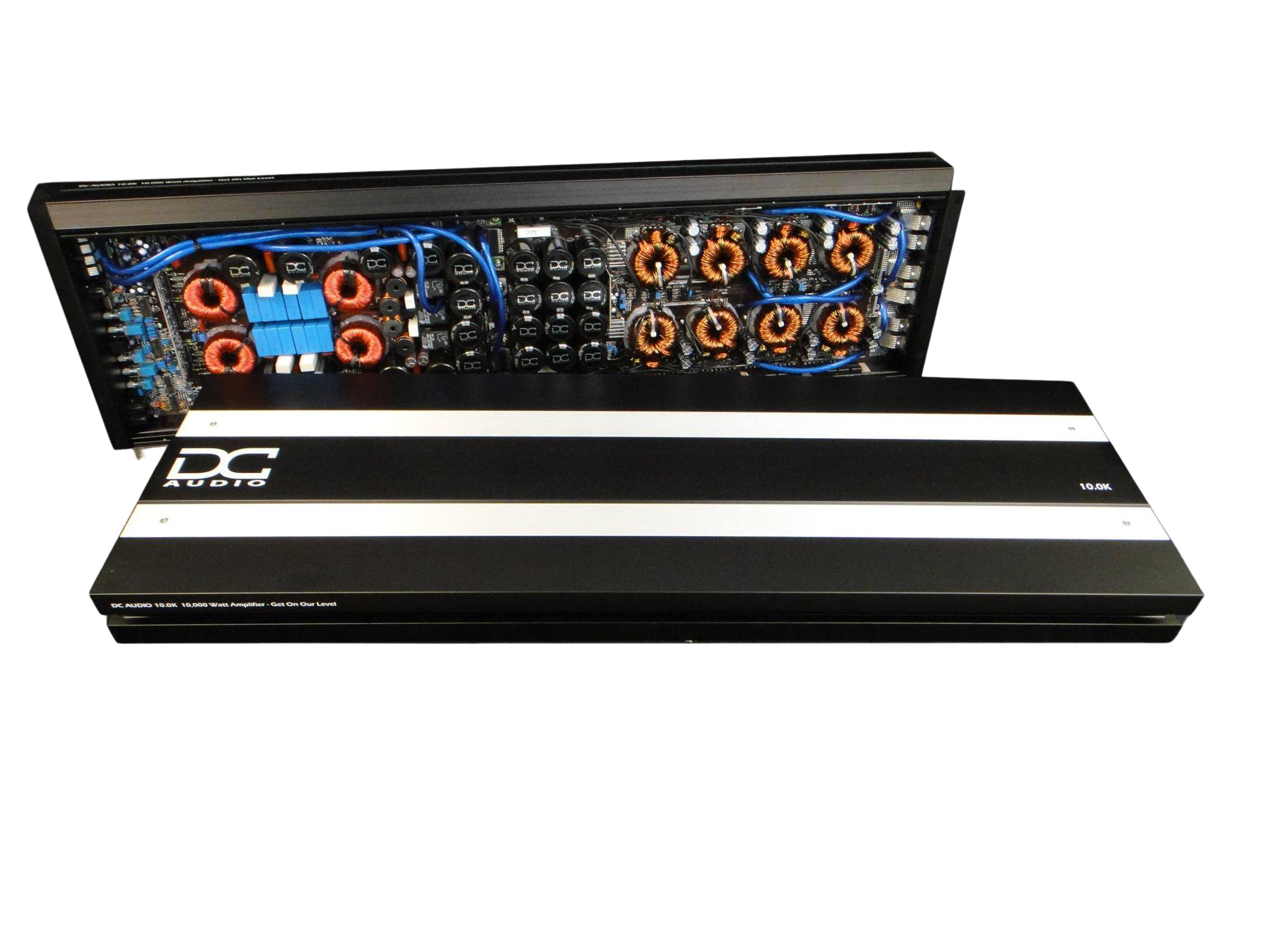

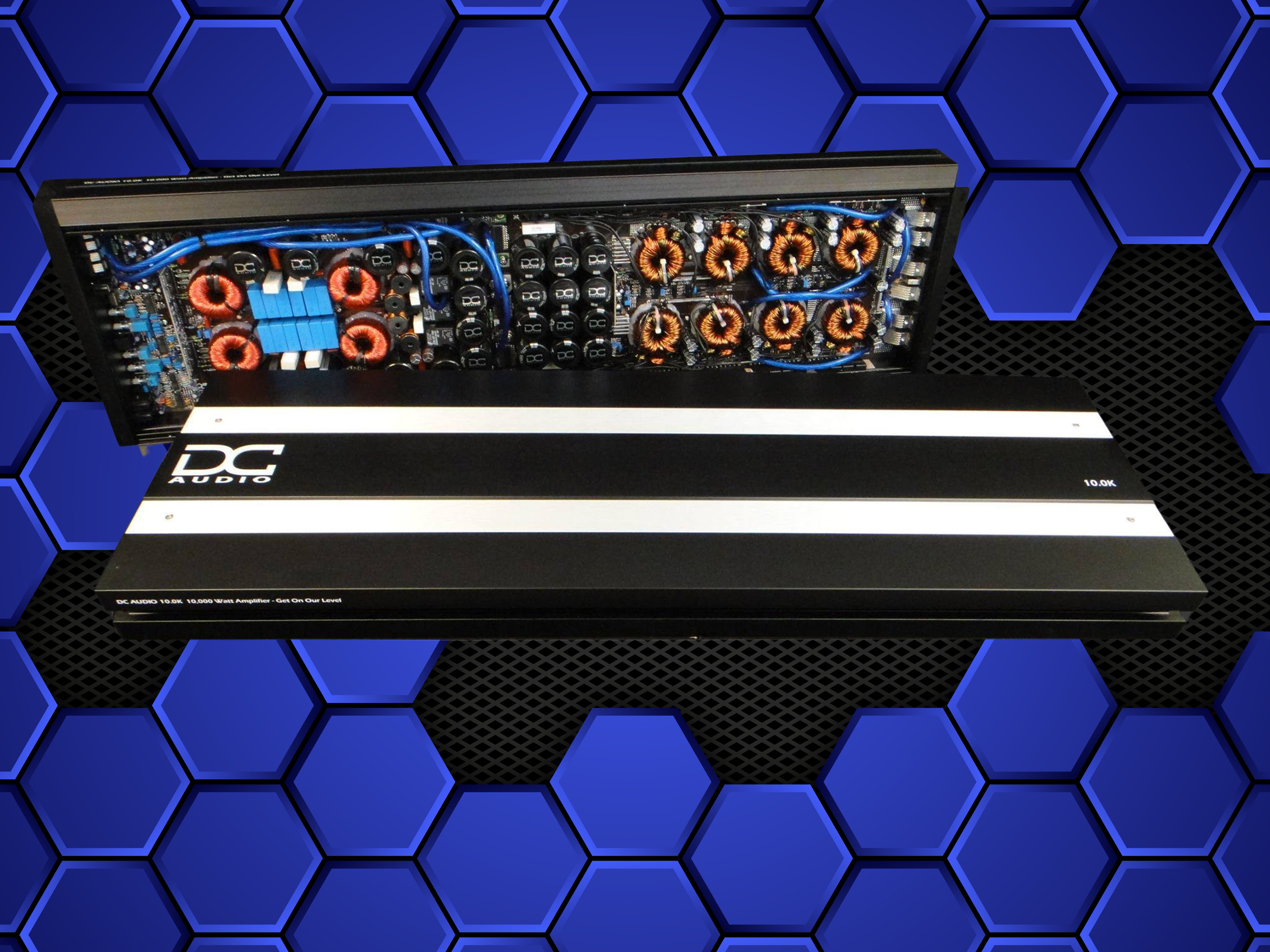

DC Audio 10.0k
Amplifier Description
The 10.0kw competition series amplifier is a 10,000 watt mono block. It is built for 12 volt audio systems. It will not operate on 16 or 18 volt systems. Charging Voltage must stay under 15.3 vdc. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped for 20,000 watts of power.
It comes with a bass knob and a clipping indicator. For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.
Output Power (RMS)
4 ohm 3000Wx1 @ 14.4 Volts
2 ohm 5500Wx1 @ 14.4 Volts
1 ohm mono 10,000x1 @ 14.4 Volts
DO NOT CHARGE OVER 15.3Volts
Key Features
• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired Bass Knob remote control W/ Clip Light
• RCA Pass Thru
• Linkable
• Triple 0 Awg Power Ground Inputs
Recommended for installation :
2 Upgraded Alternators or 350 amps of charging power
Upgraded under hood Battery
1000ah of AGM Batteries in the trunk or 140ah Lithium
Dash mounted voltage meter
0 Awg OFC power and ground
Power & ground runs from front to back batteries.
DO NOT mount to subwoofer box. (will void warranty)
AMP SPECS:
| DC Amp Model: | 10.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 15Hz~270Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 150< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 350 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | Yes |
| Heatsink Length | 34.64"/880mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |
