DC Audio 7.5k
Amplifier Description
The 7.5kw competition series amplifier is a 7,500 watt mono block. It is capable of running up to 18 volts for up to 9,200 watts. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped.
It comes with a bass knob. For power inputs it will accept dual 0 awg for power and dual 0 awg for ground.
Output Power (RMS)
4 ohm 2000Wx1 @ 14.4 Volts
2 ohm 4400Wx1 @ 14.4 Volts
1 ohm mono 7500x1 @ 14.4 Volts
1 ohm mono 8600x1 @ 16.0 Volts
1 ohm mono 9200x1 @ 18.0 Volts
Key Features
• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired Bass Knob remote control
• RCA Pass Thru
• Linkable
• Dual 0 Awg Power Ground Inputs
Recommended for installation :
2 Upgraded Alternators or 325 amps of charging power
Upgraded under hood Battery
1000ah of AGM Batteries in the trunk or 140ah Lithium
Dash mounted voltage meter
0 Awg OFC power and ground
Power & ground runs from front to back batteries.
DO NOT mount to subwoofer box. (will void warranty)
AMP SPECS:
| DC Amp Model: | 7.5k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | No |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 250< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 350 amp x 2 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 32.28"/820mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |

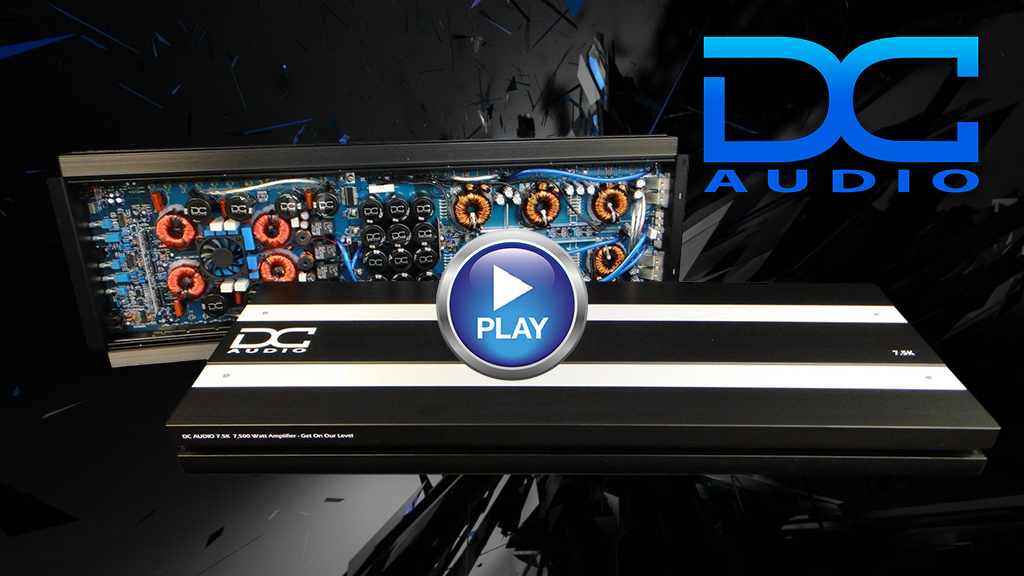

Overview Video
